Roll width is not just a supplier choice. It can change how much film the job uses, how much waste the layout creates, how long the order needs to be, and what is left on the roll after the job is cut.
The best roll width is not always the widest one. It is not always the roll already sitting in the shop either. The right answer depends on the pane sizes, quantities, film type, orientation, order increment, and whether the cut plan is practical.
In Practical Terms
Compare 36, 48, 60, and 72 inch window film rolls by how the actual panes fit across the roll. Look at required pulls, length per pull, linear feet used, cut-layout waste, order length, handling, and usable remainder. There is no universal best roll width. The right roll is the one that makes sense for that job.
Start With the Pane List, Not the Roll Width
A roll-width decision should start with the measured glass. Not the total square footage by itself. Not the roll size you usually order. The pane list.
The shop needs to see:
| Job information | Why it matters |
|---|---|
| Pane sizes | Determines what can fit across each roll width |
| Quantities | Repeated sizes can change the best layout |
| Film type | Not every film is available in every width |
| Orientation | Rotating pieces can change linear feet and waste |
| Largest panes | Some widths may be ruled out unless seams are acceptable |
| Order increment | Used length and purchased length may not match |
| Leftover film | Remainder may be useful inventory or just material sitting around |
Once that information is visible, the roll-width comparison becomes real. Until then, the shop is mostly comparing assumptions.
What Each Roll Width Usually Brings to the Decision
The width itself does not make the decision. The fit does.
| Roll width | Can work well when | Watch for |
|---|---|---|
| 36" | Narrow panes, sidelites, small repeated sizes, or jobs where wider film does not add value | More pulls on larger panes, possible seams on wider glass, and longer total roll length |
| 48" | Mid-size panes, 24" pairs, 48" sides that can run across the roll, or lighter handling needs | Unused width on 30", 32", or 36" pieces if they do not pair cleanly |
| 60" | Common flat glass sizes, two 30" pieces across, and jobs where 72" film is not worth the extra width | Waste on 36" or 48" pieces if the layout does not use the width well |
| 72" | Larger panes, two 36" pieces across, or rotated layouts where a 72" side spans the roll | Higher purchase cost, heavier handling, availability, and larger remainder if the job does not use the roll cleanly |
That table is only a starting point. A 72" roll can be the cleanest answer on one job and a poor buy on the next. A 36" roll can look too small at first and still be the right material decision for narrow repeated glass.

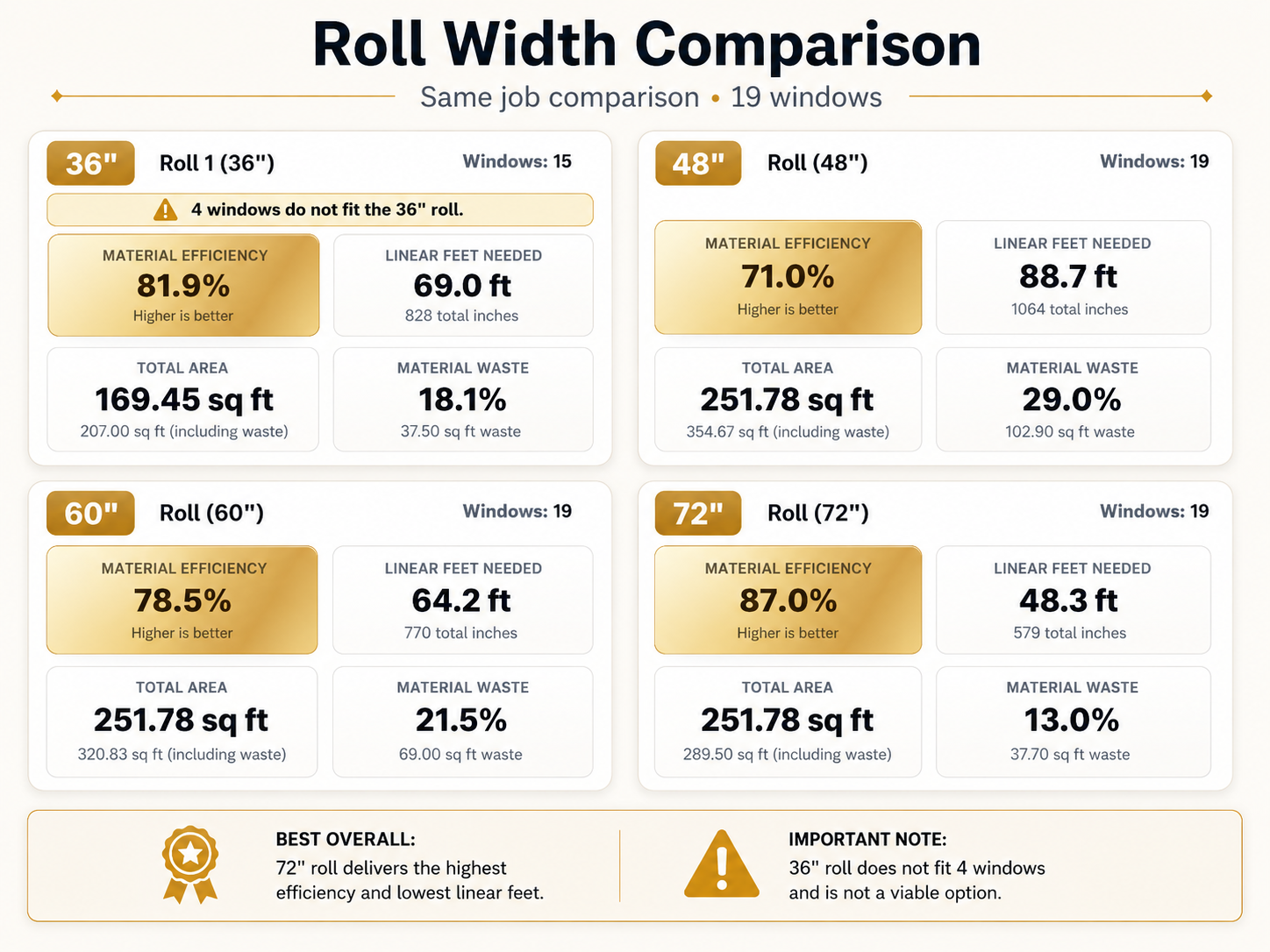

Example: One 19-Window Job Across Four Roll Widths
The comparison for this article uses one flat glass job checked against 36", 48", 60", and 72" rolls. The job has 251.78 square feet of measured glass across 19 windows.
The important detail is that the 36" roll does not fit every pane. It can only cover 15 of the 19 windows in this comparison, so it is not a viable single-roll option for the whole job.
| Roll option | Windows covered | Linear feet needed | Material efficiency | Material waste | Planning note |
|---|---|---|---|---|---|
| 36" roll | 15 of 19 | 69.0 ft. | 81.9% | 18.1% | Four windows do not fit this roll width |
| 48" roll | 19 of 19 | 88.7 ft. | 71.0% | 29.0% | Fits the job, but uses the most length and waste in this set |
| 60" roll | 19 of 19 | 64.2 ft. | 78.5% | 21.5% | Better than 48" here, but still not the cleanest layout |
| 72" roll | 19 of 19 | 48.3 ft. | 87.0% | 13.0% | Best overall in this comparison |
On this job, the 72" roll gives the best visible layout result. It covers all 19 windows, uses the lowest linear feet, and shows the lowest material waste.
That does not prove 72" is always the right roll. It proves that this job should not be ordered from habit. The 36" roll is not viable, the 48" roll carries more length and waste, the 60" roll improves the plan, and the 72" roll wins this comparison.
Do Not Compare Linear Feet Without Roll Width
Linear feet only makes sense when it is tied to the roll width.
Thirty feet of 72" film is not the same material purchase as 30 feet of 36" film. The length may match, but the width, cost, handling, and leftover material are different.
A useful comparison should keep these numbers together:
| Number | What it tells the shop |
|---|---|
| Roll width | The material width being compared |
| Linear feet used | How much length the layout consumes |
| Order length | How much film must be bought, pulled, or allocated |
| Cut-layout waste | Material lost inside the planned layout |
| Remainder | Film left after the job is planned or cut |
| Usable inventory | Remainder that is tracked, protected, and realistic to use later |
If the shop only compares linear feet, the wider roll can look better than it really is. If the shop only compares square footage, the material side can disappear completely.
Narrower Rolls Can Be the Right Choice
A narrower roll can make sense when the panes fit it cleanly, the purchase cost is lower, the handling is easier, or the wider roll does not reduce the order length enough to matter.
For example, a 36" roll may be a good fit for narrow repeated panes if the job would not use the extra width of a 48", 60", or 72" roll. A 48" roll may be the better choice when the pieces fill the width cleanly and a wider roll would only create unused material beside each pull.
This is not about being cheap with the order. It is about matching the roll to the job.
The narrower roll is weak when it creates too many pulls, forces seams that should not be there, increases waste, or turns a simple cut layout into extra work. But when it fits the pane list, it deserves a real comparison.
Wider Rolls Can Be the Right Choice
A wider roll can make sense when it lets pieces fit side by side, reduces required pulls, avoids seams on larger panes, or allows a rotated layout that lowers the total length used.
The 72" roll in the 19-window example is a clean case. It fits every window in the comparison, lowers the linear feet, and reduces material waste compared with the 48" and 60" layouts.
But wider film still needs to earn the decision.
If the wider roll leaves large unused strips, costs more to buy, is awkward to handle, or leaves a remainder the shop will probably never use, the lower linear-foot number may not mean much. Wider is helpful when the layout proves it, not because the roll looks more capable on paper.
Order Length Can Change the Buying Decision
A layout may use 48.3 feet, 64.2 feet, or 88.7 feet. That does not always mean the shop can buy exactly that length.
Suppliers may have order minimums or fixed increments. The shop may also choose to order extra for handling, trim, difficult access, future replacements, or because the film is not easy to get quickly.
That is where two roll-width options can get closer than they look. One layout may use less film, but both options may still require the same order length. Another layout may use more film but create a cheaper purchase because the narrower roll costs less. Another may leave a larger remainder that is valuable only if the shop can use that film on another job.
The roll-width comparison should show the layout. The buying decision should include the order length.
Waste and Remainder Should Stay Separate
Cut-layout waste is material lost because of how the pieces fit in the planned layout. Remainder is material left on the ordered or pulled roll after the job is planned or cut.
Those are not the same thing.
A job can have low cut-layout waste and still leave a lot of film on the roll because of order increments. A different job can have more layout waste but less remaining film after the order is used.
That distinction matters before ordering. If the shop treats every leftover as waste, it may miss usable inventory. If it treats every leftover as useful, it may overvalue material that will never fit another job.
A good roll-width comparison should make both visible.
Check the Practical Side Before Ordering
A roll-width layout can fit mathematically and still be a poor shop decision.
Before ordering, check the practical side:
| Check | Why it matters |
|---|---|
| Is the film available in that width? | The best layout does not help if the film cannot be ordered |
| Can the pieces be rotated? | Orientation can change the entire comparison |
| Are seams acceptable or avoidable? | Some panes may rule out narrower rolls |
| Is the roll practical to handle? | Wider material may change cutting and setup |
| Is the order increment clear? | Used length and purchased length may differ |
| Is the remainder useful? | Leftover film only helps if it can be tracked and reused |
| Are film types separated? | Different products need separate material plans |
| Is compatibility still visible? | Material planning does not replace film-to-glass review |
This does not need to turn every job into a long meeting. It just keeps the shop from ordering from an incomplete number.
Common Ways the Roll Comparison Gets Weak
One weak point is starting with total square footage. Square footage tells the shop the glass area, but it does not show how the panes fit on a roll.
Another is comparing every job against the same favorite roll width. A shop may use 60" film often because it works well for many jobs. That does not mean it is the right answer every time.
Another is assuming the widest roll will be the most efficient. Sometimes it is. Sometimes it just leaves a wider strip of unused material.
A fourth is stopping at linear feet. Lower linear footage is useful information, but it still has to be compared against roll width cost, order length, handling, and leftover film.
The bigger mistake is ordering before the layout is visible. Once the film is bought or pulled, the shop has fewer clean options.
How Precision Film Systems Fits Into This
Precision Film Systems is built for this comparison step inside the larger material plan.

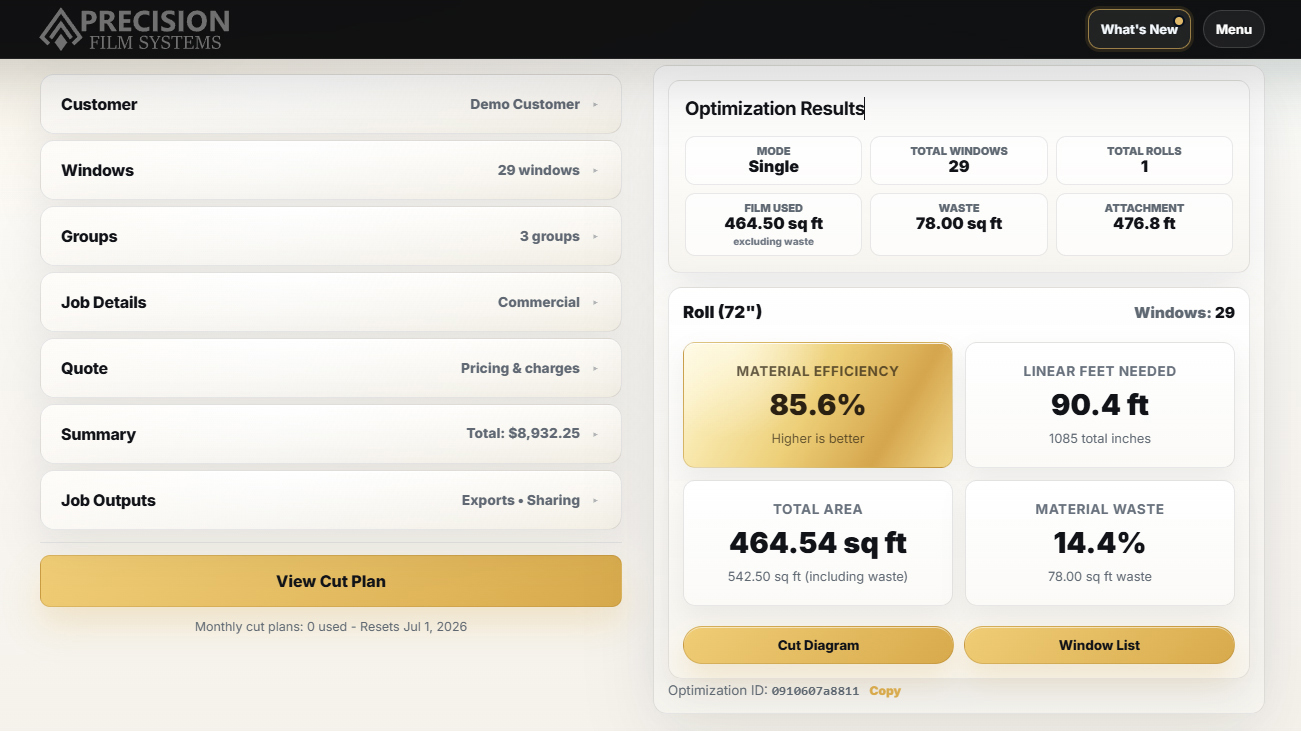

It helps organize pane sizes, quantities, film type, roll-width options, linear feet, waste, and cut-layout planning so the shop can see how different rolls behave before the material decision gets too far along.
The software does not choose the roll width for the installer. It makes the comparison visible.
That matters because 36", 48", 60", and 72" rolls can all be the right answer on different jobs. The only way to know is to compare them against the actual pane list, the available film, and the way the material will be ordered or pulled.
If leftover film is part of the decision, Film on Hand mode can also help the shop consider material already available instead of treating partial rolls like a guess from memory.
The goal is simple: compare the roll widths before ordering, so the quote, cut plan, and material purchase are working from the same information.
Comparing window film roll widths
What is the best roll width for flat glass window film?
There is no universal best roll width. The right choice depends on pane sizes, quantities, film availability, orientation, required pulls, linear feet, cut-layout waste, order length, and whether the layout is practical for the job.
Should I always use a 72 inch window film roll if it is available?
No. A 72 inch roll can reduce linear feet when panes fit it well, but it can also cost more, be harder to handle, or leave more remainder than the shop can realistically use.
When does a 36 or 48 inch roll make sense?
A 36 or 48 inch roll can make sense when panes are narrow, repeated, easy to fit across the roll, or when a wider roll does not reduce the order enough to justify the extra width.
Does lower linear feet always mean the better roll choice?
No. Lower linear feet is useful, but it is not the whole buying decision. The shop still has to compare roll width, order increment, material cost, cut-layout waste, handling, and usable remainder.
What should be checked before ordering window film?
Check pane sizes, quantities, film type, available roll widths, orientation, linear feet, cut-layout waste, order length, leftover film, handling needs, and compatibility status before ordering or pulling material.
