How to Turn Window Measurements Into a Material Plan

Measurements are where the job starts. They are not the material plan.

A material plan is what happens after the measurements are organized and the film has been selected or proposed. It looks at the pane sizes, quantities, roll widths, orientation, linear feet, waste, order increments, and leftover material so the shop can make a better decision before the film is bought or pulled.

The mistake is thinking the lowest linear footage is always the best answer. Sometimes it is. Sometimes it is not. A job can use fewer linear feet on a wider roll and still cost more to purchase. A narrower roll can use more length and still be the better buy. The only way to know is to look at the actual job, the available roll widths, and how the material will be ordered.

The Measurement List Is Not Enough

A measurement list can make a job look more finished than it really is.

You may have every pane measured. You may have the total square footage. You may even have the film picked out. But that still does not tell the shop what the best material decision is.

Flat glass film does not get bought or cut as loose square footage. It comes off rolls. Those rolls have widths, lengths, order increments, cost differences, and leftover material that may or may not be useful later.

That is where a lot of quotes get weaker than they look. The job gets priced off measured glass area, but the material decision underneath it was never really worked through.

The better workflow is:

• Measure the glass.
• Group the panes.
• Separate the film types.
• Compare roll widths and orientation.
• Look at order length, leftover film, and waste.
• Then trust the material number.

That middle part is the material plan.

What the Material Plan Is Really Doing

A material plan is not there to make the job notes look cleaner. It is there to keep the shop from guessing.

It should show how much of the selected film the job may use, which roll width makes sense, how the pieces may lay out, and what is left after the job is cut. It should also make it clear when compatibility still needs review, without pretending that the material plan is the film-to-glass approval.

For a flat glass job, a useful material plan should answer questions like these:

Question	Why it matters
What film is being used in each area?	Different films need separate planning
What are the pane sizes and quantities?	A size without a count is not enough
What roll widths are available?	The best roll depends on the layout
Can pieces be rotated?	Orientation can change linear footage
How many linear feet will the layout use?	The shop needs a roll-based number
What order length is required?	Used length and purchased length are not always the same
Is there cut-layout waste?	Waste can affect cost and margin
How much film is left on the roll?	Remainder may be usable on a future job
Does compatibility still need review?	The selected film still needs to make sense for the glass

That last point should stay separate. A material plan can carry a compatibility note, but it should not quietly become the compatibility decision. Compatibility is its own check. The material plan is about how the selected film is going to be used.

A Better Example: 30" x 72" Panes on 60" and 72" Rolls

Take a simple job:

• 12 panes
• each pane is 30" x 72"
• one selected film
• comparing a 60" roll and a 72" roll

The square footage is easy.

Pane size	Quantity	Square feet per pane	Total glass area
30" x 72"	12	15 sq. ft.	180 sq. ft.

So the job has 180 square feet of measured glass.

That number is useful, but it does not tell the whole material story. Now look at two possible layouts.

Option 1: 60" Roll, Not Rotated

On a 60" roll, the 30" side can run across the roll.

That means two panes fit across the width:

30" + 30" = 60"

Each row uses 72" of roll length. Since there are 12 panes and two fit per row, the job needs 6 rows.

60" roll layout	Number
Pieces across the roll	2
Rows needed	6
Length per row	72"
Total used length	432"
Linear feet used	36 ft.

So this layout uses about 36 linear feet before any extra allowance.

Within the layout itself, the roll width is being fully used. There is no empty strip beside the panes.

So the cut-layout waste is 0%.

Option 2: 72" Roll, Rotated

On a 72" roll, the pane can be turned so the 72" side runs across the roll.

That means one pane fits across the full width of the roll, and each pane uses 30" of roll length.

72" roll layout	Number
Pieces across the roll	1
Rows needed	12
Length per row	30"
Total used length	360"
Linear feet used	30 ft.

So this layout uses about 30 linear feet before any extra allowance.

Again, the roll width is being fully used. The 72" pane spans the 72" roll.

So this layout also shows 0% cut-layout waste.

At first glance, the 72" roll looks like the winner. It uses 30 linear feet instead of 36.

But the material decision is not finished yet.

Less Linear Feet Does Not Always Mean a Better Buy

This is where the real-world part shows up.

A lot of flat glass film is bought in set increments. If the film is sold in 25-foot increments, both of these options may still require the shop to buy 50 feet of film.

The 60" roll uses 36 linear feet.
The 72" roll uses 30 linear feet.

But both land in the same purchase length:

Option	Linear feet used	Likely order length	Remainder left on roll
60" roll, not rotated	36 ft.	50 ft.	14 ft.
72" roll, rotated	30 ft.	50 ft.	20 ft.

The 72" layout uses less film length.

But 50 feet of 60" film may still be cheaper to buy than 50 feet of 72" film.

So the narrower roll may be the better purchase even though it uses more linear feet.

That is the part a simple layout comparison can miss. The "best" answer is not always the one with the lowest linear footage. The shop has to look at the order increment, roll width cost, leftover material, and whether the remainder has any value later.

Waste and Remainder Are Not the Same Thing

This example is also a good reminder that waste and leftover film are not always the same thing.

In both layouts above, the cut-layout waste is 0%. The panes fill the roll width cleanly in the planned layout.

But after the job is cut, there is still film left on the ordered roll.

On the 60" roll, there may be about 14 feet left.
On the 72" roll, there may be about 20 feet left.

That remainder is not automatically waste.

It might be waste if it gets thrown on a shelf, unlabeled, forgotten, damaged, or never fits another job. But if the shop tracks it and plans around it, that remainder can still be usable inventory.

This is where the material plan should start thinking past the current job. If you know you are going to have 14 feet of 60" film left, or 20 feet of 72" film left, that information can help plan the next job.

Inside Precision Film Systems, that is where Film on Hand mode comes in. Instead of treating leftover material like a vague memory in the shop, the remaining film can be considered when planning another job. If the next job can use that roll width and remaining length, the leftover becomes part of the planning conversation instead of getting ignored.

That does not mean every leftover should drive the next job. It means the shop should be able to see it clearly enough to make a decision.

What This Example Actually Teaches

The lesson is not "always rotate the pane."

It is not "always use the wider roll."

It is not "always choose the lowest linear feet."

The better lesson is:

The material plan has to compare the layout and the purchase decision.

For the 30" x 72" example, the 72" roll gives a cleaner linear-foot number. But the 60" roll may give a cheaper purchase because both options still require a 50-foot order. The 72" roll leaves more material behind, but that leftover only has value if the shop can use it on another job.

That is the kind of thing that gets missed when a job is planned from square footage alone.

Square footage tells you the glass area.

Linear feet tells you how much roll length the layout uses.

Order length tells you what you actually have to buy.

Remainder tells you what may be available for the next job.

A real material plan needs all of that.

Group the Job Before You Compare Rolls

Before any of these roll decisions mean much, the job has to be organized.

Do not start with one big square-foot total and try to make a material decision from that. Start by grouping the panes.

Area	Pane size	Quantity	Film
Lobby	30" x 72"	8	Solar control film
Entry doors	24" x 66"	2	Solar control film
Transoms	24" x 18"	4	Solar control film

This gives the shop something it can actually work with. You can see repeated sizes. You can see the doors. You can see the smaller pieces that might get lost in a total.

It also makes it easier to catch problems before they move downstream. If the quantity is wrong, the material plan is wrong. If width and height are swapped, the layout may be wrong. If one area is using a different film, the order may be wrong.

A clean material plan starts with a clean pane list.

Keep Different Film Types Separate

If a job uses more than one film, each film needs its own material plan.

Solar control film, decorative film, safety film, and exterior film can all have different roll widths, costs, handling, and waste. They may also have different leftover value after the job is cut.

One total square-foot number may look clean on the quote, but it is not clean for ordering.

For example:

Area	Film type	Planning issue
South-facing offices	Solar control film	Compare roll width and heat-related notes
Conference room	Decorative film	Separate product, layout, and waste
Entry doors	Safety film	Separate thickness, handling, and material planning

If those are blended into one total, the shop is not really planning material. It is averaging the job into a number that may not help anyone order or cut the film.

Roll Width and Orientation Should Be Looked at Together

Roll width by itself does not tell the whole story.

A wider roll may help if it lets the panes turn, reduces seams, or creates a cleaner layout. But a wider roll can also be more expensive, and it may leave more material sitting on the roll after the job.

A narrower roll may use more linear feet and still be the better choice if it fills the width cleanly and costs less to purchase.

That is why roll width and orientation should be reviewed together.

For the 30" x 72" example:

• the 60" roll works because two 30" pieces fit across
• the 72" roll works because the pane can rotate
• both layouts show 0% cut-layout waste
• the 72" roll uses less length
• the 60" roll may cost less to buy
• both leave usable film behind if the shop tracks it

That is a much better comparison than just asking, "Which layout uses fewer linear feet?"

Check the Material Plan Before Ordering

Before the film is ordered, the job needs a practical review.

Not a long, complicated process. Just enough to make sure the shop is not buying film from a weak number.

Check the pane sizes. Make sure width and height are right. Confirm the quantities. Separate the film types. Compare the roll widths that are actually available. Look at whether pieces can be rotated. Review the linear feet. Check the order increment. Look at the leftover film. Decide whether the remainder is useful inventory or just theoretical leftover.

Also keep compatibility status visible where it belongs. If the selected film still needs review for glass type, Low-E, exposure, shading, or manufacturer guidance, the material plan should not hide that.

The mistake is treating the job like it is ready just because the measurements are done.

The measurements start the job. The material plan makes the numbers usable.

Common Ways the Plan Gets Weak

One common mistake is using square footage as the material number. Square footage is helpful, but it does not show the roll width, the orientation, the linear feet, the order increment, or the leftover film.

Another mistake is assuming the layout with the lowest linear footage is automatically the best decision. The 30" x 72" example shows why that can be wrong. The 72" roll uses less length, but the 60" roll may still be cheaper to purchase if both require a 50-foot order.

Shops also get into trouble when they treat all leftover material as waste. Some leftover is waste. Some is usable film sitting on the roll. The difference depends on whether it is tracked, protected, labeled, and considered on future jobs.

Mixing film types into one total is another easy way to weaken the plan. Different products need separate material decisions. If they are blended together, the order may look simple while the real job becomes harder to manage.

Missing pane counts will break the plan too. A size without a quantity is just a loose note. The shop needs to know whether that pane appears once, twelve times, or thirty times.

And then there is the big one: quoting before the material plan is understood. The quote can look fine until the roll comparison shows a different purchase decision, more leftover than expected, or a layout that does not work as cleanly as the square footage suggested.

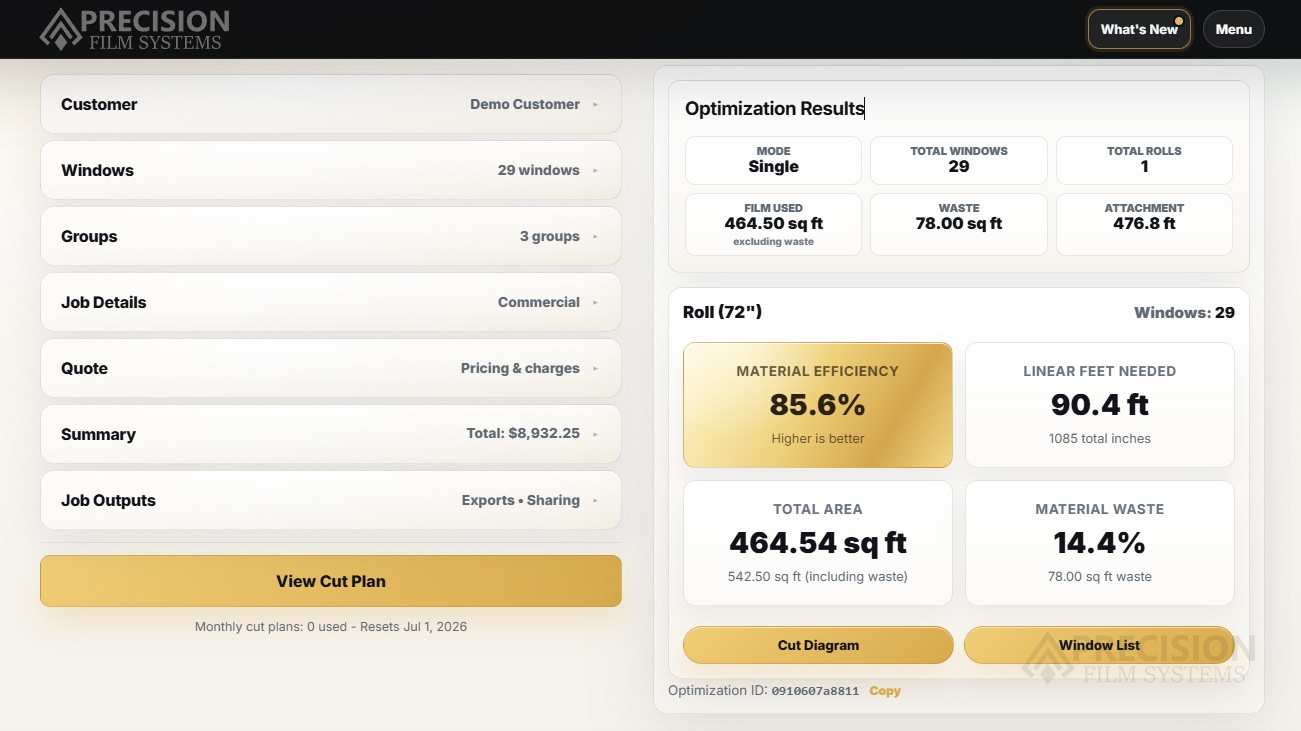

How Precision Film Systems Fits Into This

Precision Film Systems is built for this middle part of the job.

The part after measurements, but before the shop should trust the material number.

Instead of stopping at square footage, Precision Film Systems helps organize the job by pane size, quantity, film type, roll width, orientation, and layout. That gives the shop a clearer view of what the selected film may actually require.

The roll comparison is only part of the value. The next part is understanding what happens after the job is cut. If there is usable film left on the roll, that remainder can matter on the next job.

With Film on Hand mode, leftover film does not have to live only in someone's memory. The shop can plan with material it already has and decide whether the remainder from a previous job can realistically be used before buying more.

That is the difference between treating leftovers like scraps and treating them like inventory.

The goal is not to make estimating more complicated. The goal is to stop pretending the simple number is always the real number.

A stronger material plan gives the quote, the order, the cut layout, and the next job a better starting point.
